Operating temperature：-40℃~85℃
Color：Natural(or white,standard color),Uv black and other colors are available as requested.
Certificate：UL.E220676

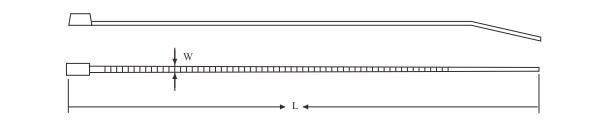

编号Item No. | L(长) | W宽 | ***大束线径MAX BUNDLE DIA(MM) | 拉力TENSILE STRENGTH | 包装Packing | ||
INCH | MM | (MM) | LBS | KGS | |||
HS-60A | 2 3/8" | 60 | 2.5 | 11 | 18 | 8 | 100PCS&1000PCS |
HS-80A | 3 3/16" | 80 | 2.5 | 16 | 18 | 8 | |
HS-100A | 4" | 100 | 2.5 | 22 | 18 | 8 | |
HS-120A | 4 3/4" | 120 | 2.5 | 30 | 18 | 8 | |
HS-150A | 6" | 150 | 2.5 | 35 | 18 | 8 | |
HS-160A | 6 1/4" | 160 | 2.5 | 40 | 18 | 8 | |
HS-200A | 8" | 200 | 2.5 | 50 | 18 | 8 | |
HS-120B | 4 3/4" | 120 | 3.5 | 30 | 40 | 18 | 100PCS&500PCS |
HS-150B | 6" | 150 | 3.5 | 35 | 40 | 18 | |
HS-180B | 7" | 180 | 3.5 | 42 | 40 | 18 | |
HS-200B | 8" | 200 | 3.5 | 50 | 40 | 18 | |
HS-250B | 10" | 250 | 3.5 | 65 | 40 | 18 | |
HS-280B | 11" | 280 | 3.5 | 70 | 40 | 18 | |
HS-300B | 11 5/8" | 300 | 3.5 | 82 | 40 | 18 | |
HS-370B | 14 1/2" | 370 | 3.5 | 102 | 40 | 18 | |
HS-120C | 4 3/4" | 120 | 4.5 | 24 | 50 | 22 | |
HS-150C | 6'' | 150 | 4.5 | 35 | 50 | 22 | |
HS-190C | 7 1/2" | 190 | 4.5 | 46 | 50 | 22 | |
HS-200C | 8" | 200 | 4.6 | 50 | 50 | 22 | |
HS-250C | 10" | 250 | 4.8 | 65 | 50 | 22 | |
HS-280C | 11" | 280 | 4.8 | 70 | 50 | 22 | |
HS-300C | 11 5/8" | 300 | 4.8 | 82 | 50 | 22 | |
HS-350C | 13 3/4" | 350 | 4.8 | 90 | 50 | 22 | |
HS-370C | 14 1/2" | 370 | 4.8 | 102 | 50 | 22 | |
HS-400C | 15 3/4" | 400 | 4.8 | 105 | 50 | 22 | |
HS-450C | 17 3/4" | 450 | 4.8 | 130 | 50 | 22 | |
HS-500C | 19 11/16" | 500 | 4.8 | 140 | 50 | 22 | |
HS-530C | 20 4/5'' | 530 | 4.8 | 147 | 50 | 22 | |
HS-300DS | 11 5/8'' | 300 | 6.8 | 80 | 90 | 40 | |
HS-370DS | 14 1/2'' | 370 | 6.8 | 102 | 90 | 40 | |
HS-150D | 6" | 150 | 7.6 | 33 | 120 | 55 | 100PCS |
HS-200D | 8" | 200 | 7.6 | 50 | 120 | 55 | |
HS-250D | 10" | 250 | 7.6 | 63 | 120 | 55 | |
HS-300D | 11 5/8" | 300 | 7.6 | 82 | 120 | 55 | |
HS-350D | 13 3/4" | 350 | 7.6 | 90 | 120 | 55 | |
HS-370D | 14 1/2" | 370 | 7.6 | 102 | 120 | 55 | |
HS-400D | 15 3/4" | 400 | 7.6 | 105 | 120 | 55 | |
HS-450D | 17 3/4" | 450 | 7.6 | 118 | 120 | 55 | |
HS-500D | 19 11/16" | 500 | 7.6 | 150 | 120 | 55 | |
HS-550D | 21 11/16'' | 550 | 7.6 | 160 | 120 | 55 | |
HS-430DL | 17 " | 430 | 9 | 112 | 175 | 80 | |
HS-450DL | 17 3/4" | 450 | 9 | 118 | 175 | 80 | |
HS-550DL | 21 11/16" | 550 | 9 | 160 | 175 | 80 | |
HS-600DL | 23 5/8" | 600 | 9 | 170 | 175 | 80 | |
HS-650DL | 25 9/16" | 650 | 9 | 190 | 175 | 80 | |
HS-700DL | 27 1/2" | 700 | 9 | 200 | 175 | 80 | |
HS-760DL | 30" | 760 | 9 | 225 | 175 | 80 | |
HS-810DL | 32'' | 810 | 9 | 239 | 175 | 80 | |
HS-920DL | 36 1/4" | 920 | 9 | 265 | 175 | 80 | |
HS-1168DL | 46'' | 1168 | 9 | 360 | 175 | 80 | |
HS-500EL | 19 11/16" | 500 | 10 | 150 | 200 | 91 | |
HS-800EL | 31 1/2'' | 800 | 10 | 230 | 200 | 91 | |
HS-550FL | 21 11/16" | 550 | 12.7 | 160 | 250 | 114 | |
