♦ Brass
♦ Tin Plated
♦ PVC Insulation

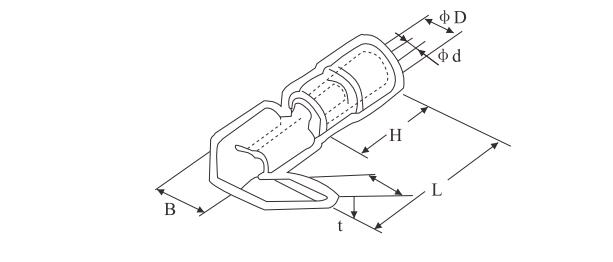

Type | DwircRange | Dimensions(mm) | 最大
电流
A |
AWG/
MCM | mm' | B |
B1
| L | Φd1 | ΦD | H | t |
MF1.25 | 18-16 | 0.75-1.25 | 6.8 | 6.3 | 22 | 1.8 | 3.9 | 9.7 | 0.8 | 10 |
MF2 | 16-14 | 1.25-2.0 | 6.8 | 6.3 | 22 | 2.3 | 4.2 | 9.7 | 0.8 | 15 |
MF5.5 | 12-10 | 2.63-6.64 | 6.8 | 6.3 | 22 | 3.5 | 5.5 | 13.7 | 0.8 | 24 |
