♦ Electrolytic Copper
♦ Tin Plated
♦ Easy entry
♦ * P. V. C. Insulation
|
|
|
|
|
|
|

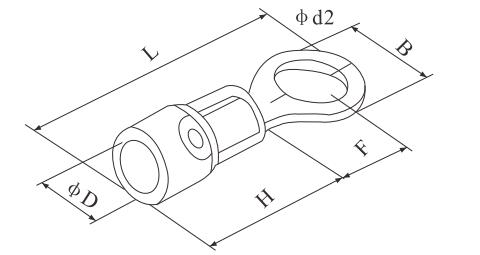

| L | Color | ***大电流 | |
Type | Dwire Range | фD | H | 美制镙栓号 | F | B | фd2 | A | |||
AWG/MCM | mm2 |
| 17.8 | Red | 19 | ||||||
RV1.25-3S | 22-16 | 0.5-1.5 | 4.3 | 10 | #4 | 4.3 | 5.7 | 3.2 | 17.8 | ||
RV1.25-3.5S | #6 | 4.3 | 5.7 | 3.7 | 20.1 | ||||||
RV1.25-3.5M | #6 | 6.3 | 6.6 | 3.7 | 21.5 | ||||||
RV1.25-3.5L | #6 | 7 | 8 | 3.7 | 20.1 | ||||||
RV1.25-4S | #8 | 6.3 | 6.6 | 4.3 | 21.5 | ||||||
RV1.25-4L | #8 | 7 | 8 | 4.3 | 21.5 | ||||||
RV1.25-5 | #10 | 7 | 8 | 5.3 | 27.5 | ||||||
RV1.25-6 | 1/4 | 11.1 | 11.6 | 6.5 | 27.5 | ||||||
RV1.25-8 | 5/16 | 11.1 | 11.6 | 8.4 | 31.6 | ||||||
RV1.25-10 | 3/8 | 13.9 | 13.6 | 10.5 | 17.8 | Blue | 27 | ||||
RV2-3 | 16-14 | 1.5~2.5 | 4.9 | 10 | #4 | 4.3 | 6.6 | 3.2 | 17.8 | ||
RV2-3.5S | #6 | 4.3 | 6.6 | 3.7 | 21 | ||||||
RV2-3.5M | #6 | 7 | 6.6 | 3.7 | 22.5 | ||||||
RV2-3.5L | #6 | 7.8 | 8.5 | 3.7 | 21 | ||||||
RV2-4S | #8 | 7 | 6.6 | 4.3 | 22.5 | ||||||
RV2-4L | #8 | 7.8 | 8.5 | 4.3 | 22.5 | ||||||
RV2-5S | #10 | 7.8 | 8.5 | 5.3 | 22.5 | ||||||
RV2-5L | #10 | 7.3 | 9.5 | 5.3 | 27.6 | ||||||
RV2-6 | 1/4 | 11 | 12 | 6.5 | 27.6 | ||||||
RV2-8 | 5/16 | 11 | 12 | 8.4 | 30.2 | ||||||
RV2-10 | 3/8 | 13.9 | 13.6 | 10.5 | 24.5 | Yellow | 37 | ||||
RV3.5-4 | 14-12 | 2.5~4 | 6.3 | 12.5 | #8 | 7.7 | 8 | 4.3 | 24.5 | ||
RV3.5-5S | #10 | 7.7 | 8 | 5.3 | 28 | ||||||
RV3.5-5L | #10 | 7.7 | 12 | 5.3 | 28 | ||||||
RV3.5-6 | 1/4 | 7.7 | 12 | 6.5 | 21.4 | Yellow | 48 | ||||
RV5.5-3.5 | 12-10 | 4~6 | 6.7 | 12.5 | #6 | 5.9 | 7.2 | 3.7 | 21.4 | ||
RV5.5-4S | #8 | 5.9 | 7.2 | 4.3 | 25.5 | ||||||
RV5.5-4L | #8 | 8.3 | 9.5 | 4.3 | 25.5 | ||||||
RV5.5-5 | #10 | 8.3 | 9.5 | 5.3 | 31.5 | ||||||
RV5.5-6 | 1/4 | 13 | 12 | 6.5 | 33.7 | ||||||
RV5.5-8 | 5/16 | 13.7 | 15 | 8.4 | 33.7 | ||||||
RV5.5-10 | 3/8 | 13.7 | 15 | 10.5 | 38.1 | ||||||
RV5.5-12 | 1/2 | 16 | 19.2 | 13 |
|
|
| ||||
