尼龙固定头PG型

PG THREAD CABLE GLAND

UL尼龙66,防火等级94V-2,夹紧圈为耐油棟胶材质,

特点：1.夹紧圈经特殊设计，拉力强，封电缆不造成损伤2.不需将固定头解体，电缆可直接穿入上紧即可，省时方便。

用途：一般机械控制箱，配电缆，机器，电器等电缆固定用。

颜色：黑、灰、亮灰

Material:Nylon66,94V-2 and tight ring from rubber.

Feature: 1 Special designation,good strength aile and none damage to electrical machine.2 not need to dismetgrate the fix terminal,cable can be inserted hrough directly then tighten easy and save time.

Application:used formachiery cotrol box,distribution plate,machine and electrical, etc.

产品详情

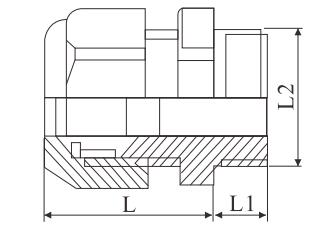

Item No.	L1 mm	适用电缆 cable range (mm)	L mm	扳手直径 Spanner size (mm)	螺纹外径 L2 mm
HS-PG07	8	3-6.5	22	16	12
HS-PG09	8	4-8	26	19	16
HS-PG11	8	5-10	27	22	18
HS-PG13.5	9	6-12	28	24	20
HS-PG16	10	10-14	30	27	22
HS-PG19	10	12-15	30	27/28	24
HS-PG21	10	13-18	35	33	28
HS-PG25	11	16-21	34	35/36	30
HS-PG29	12	18-25	40	41/42	37
HS-PG36	14	22-32	48	52/53	47
HS-PG42	14	32-38	49	60/61	54
HS-PG48	14	37-44	50	64/65	59
HS-PG63	27	42-50	60	72	70
